Dodeka Mini 45° Shell Mill 125mm Dia with 16 Flutes 4124262

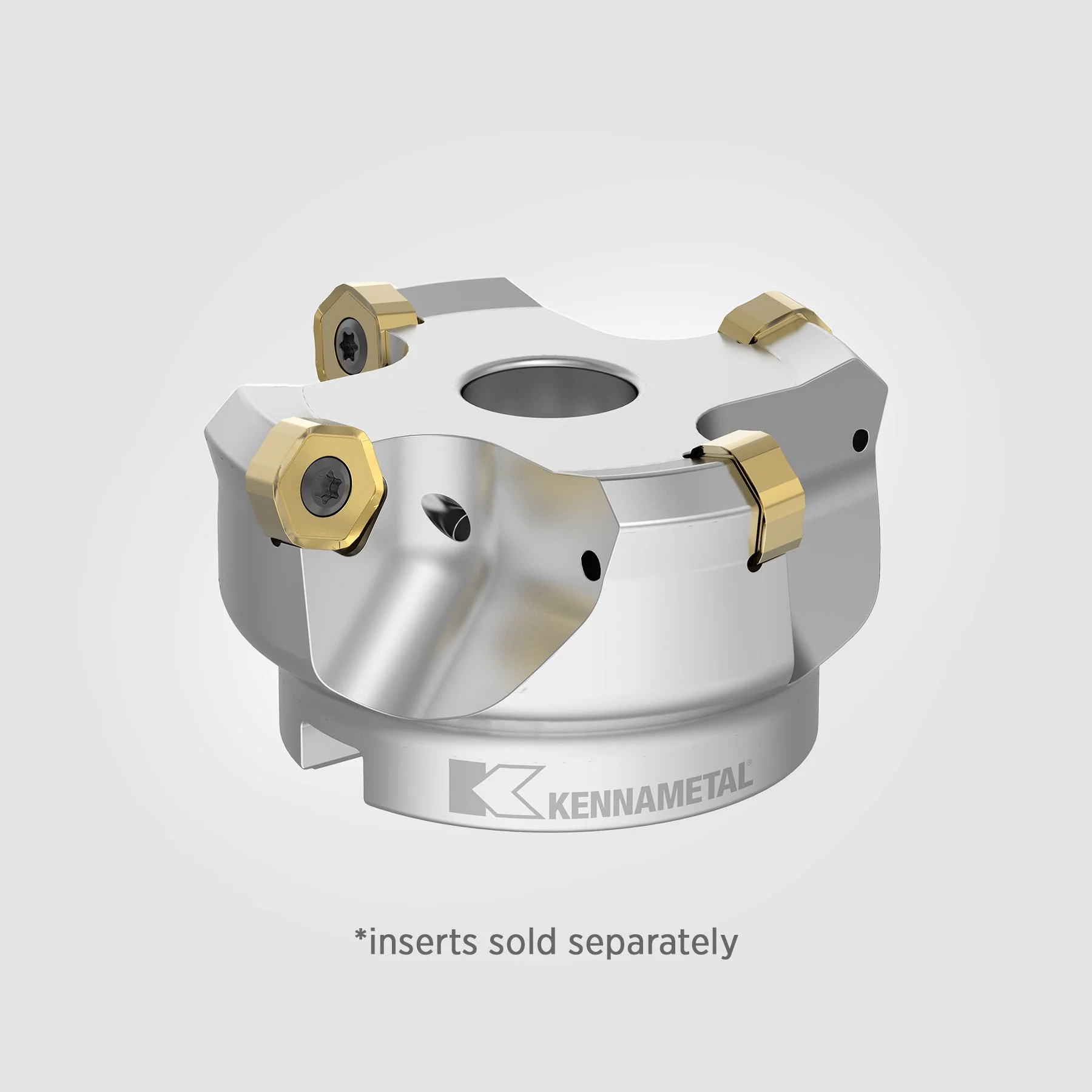

Product image 1

Dodeka Mini 45° Shell Mill 125mm Dia with 16 Flutes 4124262

TITAN's Go-To Shell Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: A-Socket Head Cap Screw
  • Through Coolant: Yes
  • Number of Flutes: 16
  • Arbor Diameter (Inch): 1.5748"
  • Arbor Diameter (Metric): 40.000mm
  • Effective Cutting Diameter (Inch): 4.9213"
  • Effective Cutting Diameter (Metric): 125.000mm
  • Maximum Cutting Diameter (Inch): 5.242"
  • Maximum Cutting Diameter (Metric): 133.145mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.230mm
  • Overall Length (Inch): 2.480"
  • Overall Length: 63.000mm
  • Max RPM: 5,050

Country of Origin is subject to change.

Safety data sheets upon request.

$1,783.49
Dodeka Mini 45° Shell Mill 125mm Dia with 16 Flutes 4124262—
$1,783.49

Product Information

Shipping & Returns

Description

TITAN's Go-To Shell Mill!
  • Twelve cutting edges per insert.
  • Maximum number of teeth per diameter.
  • Productivity booster in all materials.
Applications
  • Chamfer Milling
  • Face Milling
Technical Data
  • Adapter Style: A-Socket Head Cap Screw
  • Through Coolant: Yes
  • Number of Flutes: 16
  • Arbor Diameter (Inch): 1.5748"
  • Arbor Diameter (Metric): 40.000mm
  • Effective Cutting Diameter (Inch): 4.9213"
  • Effective Cutting Diameter (Metric): 125.000mm
  • Maximum Cutting Diameter (Inch): 5.242"
  • Maximum Cutting Diameter (Metric): 133.145mm"
  • Maximum Cutting Depth (Inch): 0.127"
  • Maximum Cutting Depth (Metric): 3.230mm
  • Overall Length (Inch): 2.480"
  • Overall Length: 63.000mm
  • Max RPM: 5,050

Country of Origin is subject to change.

Safety data sheets upon request.
